Audio Spectrum Analyzer on an ESP32 Display Board

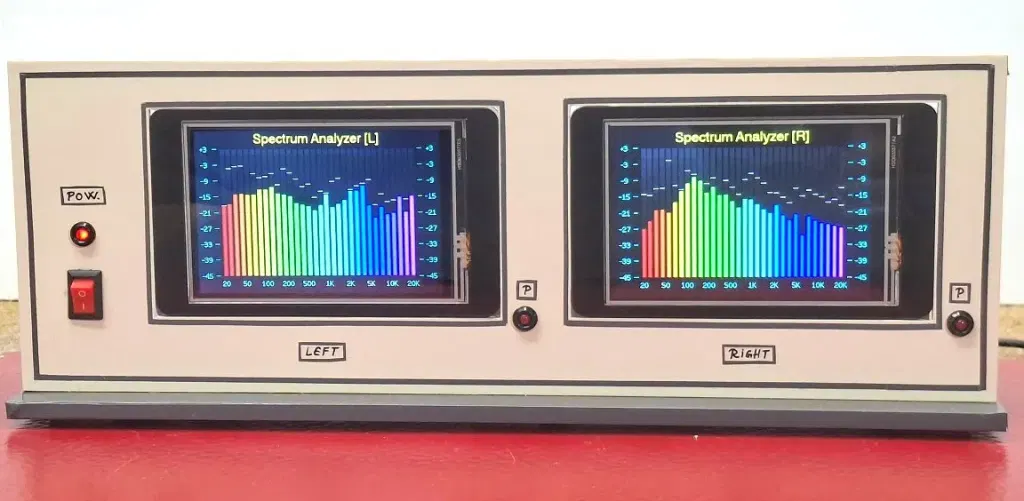

A DIY audio spectrum analyzer was built using an ESP32 microcontroller and a 480x320 touch screen display. The project demonstrates that modern microcontrollers can handle spectrum analysis with minimal additional hardware. The build requires only a few passive components to condition the analog audio signal for the microcontroller's ADC.
- ▪The project utilizes the CrowPanel 3.5, which integrates an ESP32 with a 480x320 touch screen LCD.
- ▪Only a handful of passive components are needed to process the incoming analog audio signal for the ADC.
- ▪The design is adaptable to other display panels, though code modifications may be required.
- ▪The article also references a separate, more advanced project involving a high-voltage X-ray machine made from a vacuum tube.
